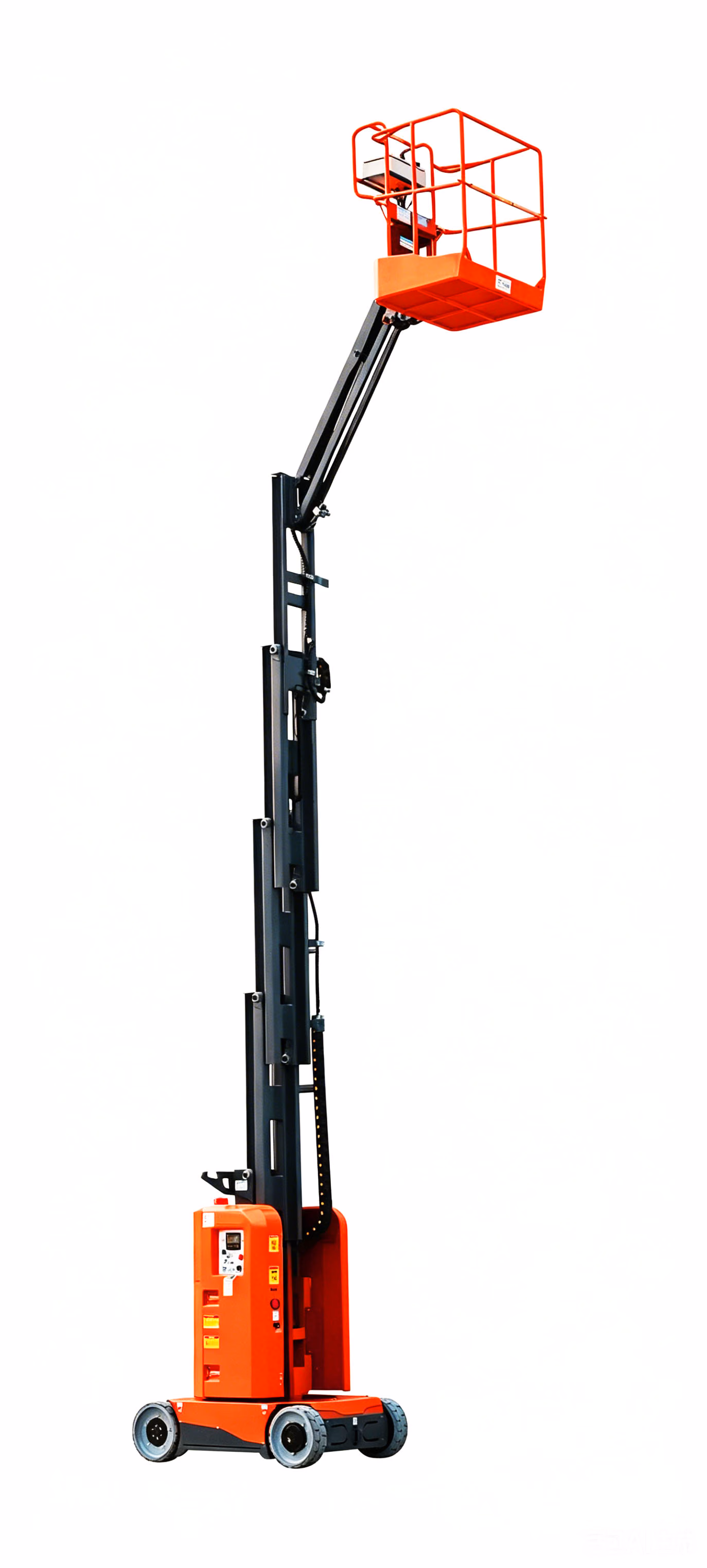

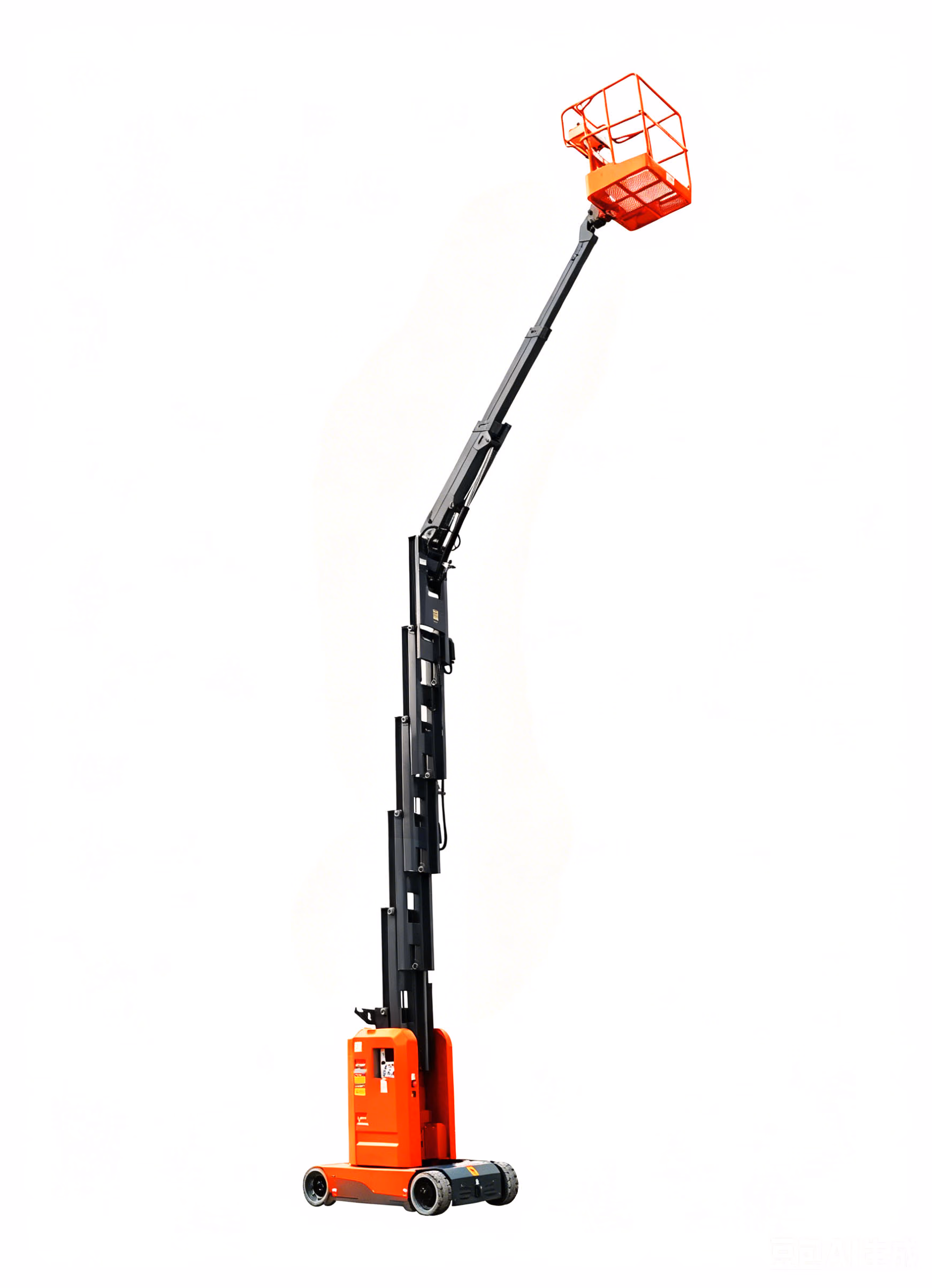

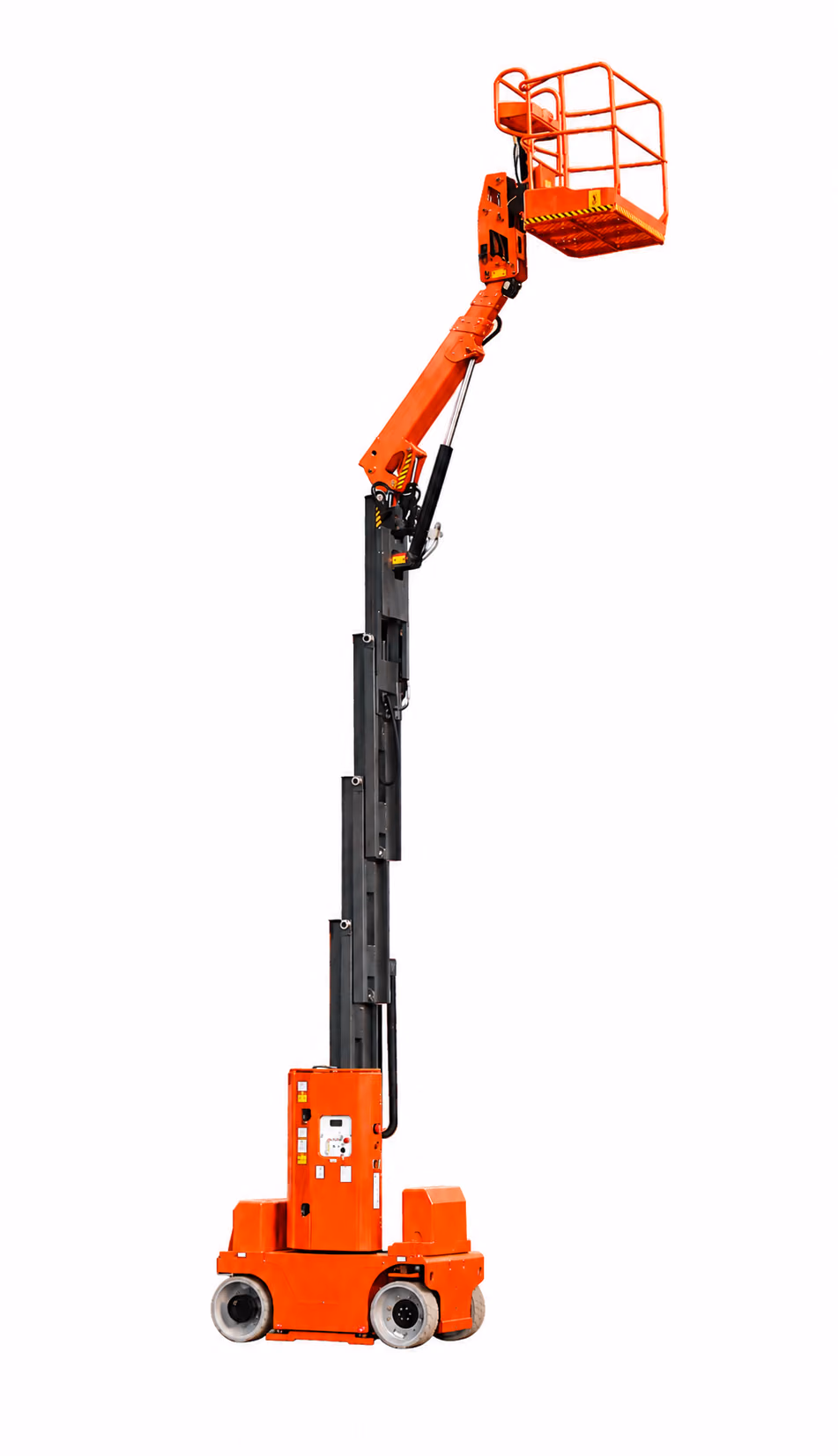

Mast Lift with Jib
6 model(s)
Full Specification Comparison
| Parameter | AMWP9C-7100 | AMWP10C-7100 | AMWP10-7100 | AMWP11-7100 | AMWP12N-7100 | AMWP13-7100 |
|---|---|---|---|---|---|---|
| Height | 9m | 10m | 10m | 11m | 12m | 13m |
| Weight | 1800kg | 1950kg | 1700kg | 1850kg | 2100kg | 2300kg |
| Overall Length | 1.95m | 1.95m | 1.95m | 1.95m | 2.1m | 2.1m |
| Overall Width | 0.79m | 0.79m | 0.79m | 0.79m | 0.85m | 0.85m |
| Overall Height | 1.98m | 1.98m | 1.98m | 1.98m | 2.1m | 2.1m |
| Occupants | 1 | 1 | 1 | 1 | 1 | 1 |
| Travel Speed | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
| Battery | 2x12V/150Ah | 2x12V/150Ah | 2x12V/150Ah | 2x12V/150Ah | 2x12V/200Ah | 2x12V/200Ah |
| Lift Motor | 24VDC/2.2kw | 24VDC/2.2kw | 24VDC/2.2kw | 24VDC/2.2kw | 24VDC/3kw | 24VDC/3kw |
| Capacity | 150kg | 150kg | 150kg | 150kg | 150kg | 150kg |
| Power | Electric | Electric | Electric | Electric | Electric | Electric |
| Max Platform Height | 7m | 8m | 8m | 9m | 10m | 11m |
| Platform Size | 0.7x0.95m | 0.7x0.95m | 0.7x0.95m | 0.7x0.95m | 0.7x0.95m | 0.7x0.95m |
Series Comparison
At-a-glance comparison across all 4 series
| Series | Models | Work Height | Capacity | Power |
|---|---|---|---|---|
| Mast Lift with Jib | 6 | 9-13m | 150-150kg | Electric |
| Telescopic Mast Lift | 9 | 5.6-13.2m | 150-227kg | Electric |
| Vertical Mast Lift | 10 | 5-12m | 125-150kg | Electric |
| Material Hoist | 4 | 3-7.5m | 500-500kg | Electric |
Why Choose Our Products
Engineering excellence that translates to real-world performance and long-term reliability
Ultra-Compact Footprint
Slim profile fits through narrow aisles and doorways.
Quick Single-Operator Setup
Tool-free assembly, work at height within minutes.
Quiet Electric Operation
Battery-powered, silent performance in occupied spaces.
Material Lifting Solutions
Dedicated hoist models handle up to 500kg.
