Vertical Mast Lift
10 model(s)
Full Specification Comparison

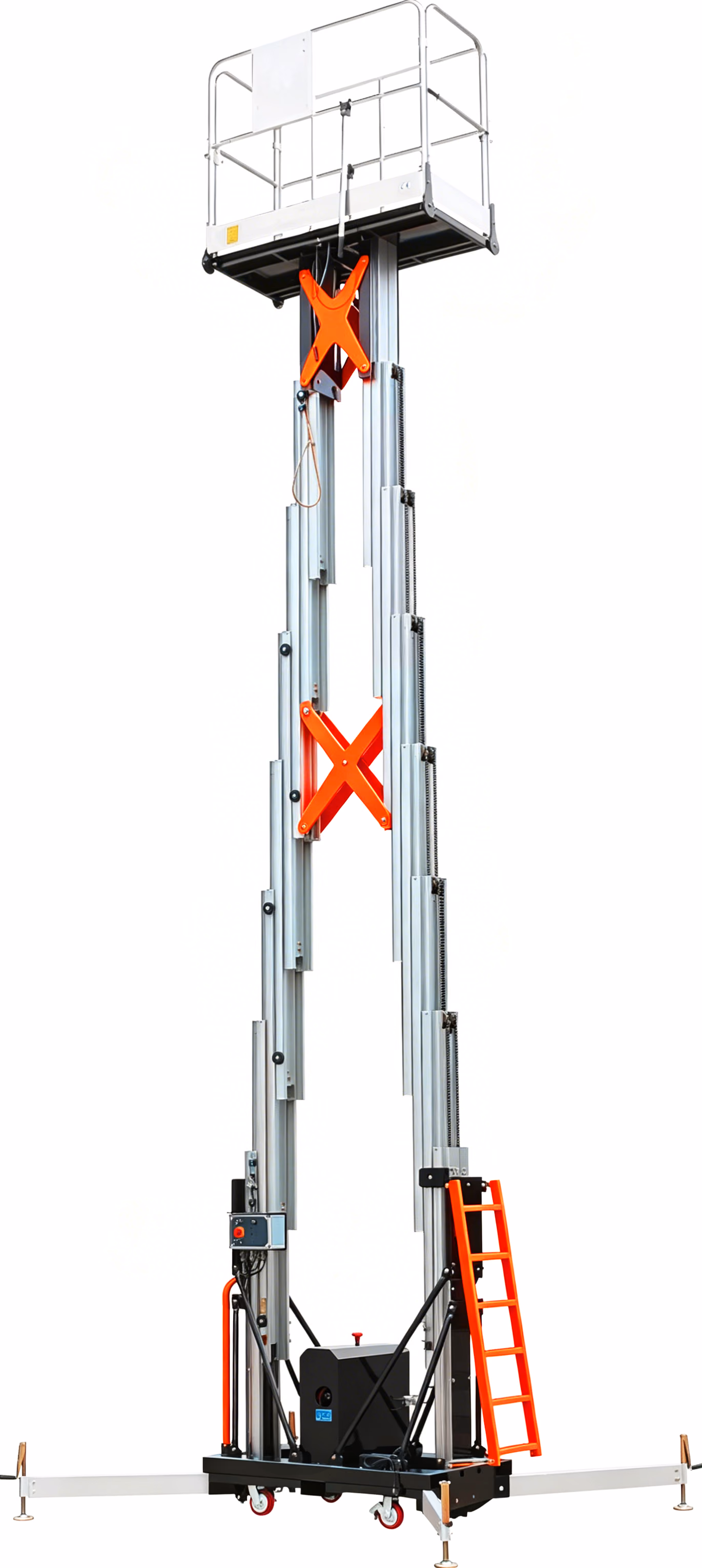

| Parameter | GTWY1-5 | GTWY1-6 | GTWY1-8 | GTWY1-9 | GTWY1-10 | GTWY1-12 | GTWY2-6 | GTWY2-8 | GTWY2-10 | GTWY2-12 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max Platform Height | 3m | 4m | 6m | 7m | 8m | 10m | 4m | 6m | 8m | 10m |
| Platform Size | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m | 0.6x0.55m |
| Weight | 280kg | 320kg | 380kg | 420kg | 460kg | 520kg | 350kg | 420kg | 500kg | 580kg |
| Overall Length | 1.3m | 1.3m | 1.3m | 1.3m | 1.3m | 1.3m | 1.35m | 1.35m | 1.35m | 1.35m |
| Overall Width | 0.76m | 0.76m | 0.76m | 0.76m | 0.76m | 0.76m | 0.8m | 0.8m | 0.8m | 0.8m |
| Overall Height | 1.8m | 1.8m | 1.98m | 1.98m | 2.0m | 2.0m | 1.9m | 1.98m | 2.1m | 2.1m |
| Occupants | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Travel Speed | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Battery | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/120Ah | 2x12V/120Ah | 2x12V/120Ah | 2x12V/120Ah |
| Height | 5m | 6m | 8m | 9m | 10m | 12m | 6m | 8m | 10m | 12m |
| Capacity | 125kg | 125kg | 125kg | 125kg | 125kg | 125kg | 150kg | 150kg | 150kg | 150kg |
| Power | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
Series Comparison
At-a-glance comparison across all 4 series
| Series | Models | Work Height | Capacity | Power |
|---|---|---|---|---|
| Mast Lift with Jib | 6 | 9-13m | 150-150kg | Electric |
| Telescopic Mast Lift | 9 | 5.6-13.2m | 150-227kg | Electric |
| Vertical Mast Lift | 10 | 5-12m | 125-150kg | Electric |
| Material Hoist | 4 | 3-7.5m | 500-500kg | Electric |
Why Choose Our Products
Engineering excellence that translates to real-world performance and long-term reliability
Ultra-Compact Footprint
Slim profile fits through narrow aisles and doorways.
Quick Single-Operator Setup
Tool-free assembly, work at height within minutes.
Quiet Electric Operation
Battery-powered, silent performance in occupied spaces.
Material Lifting Solutions
Dedicated hoist models handle up to 500kg.
