Telescopic Mast Lift
9 model(s)
Full Specification Comparison

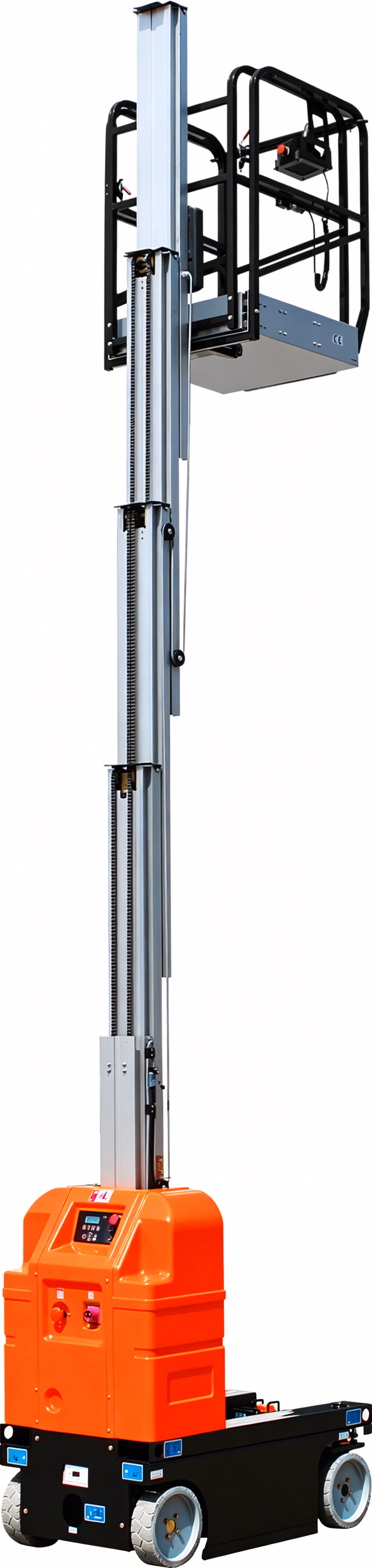

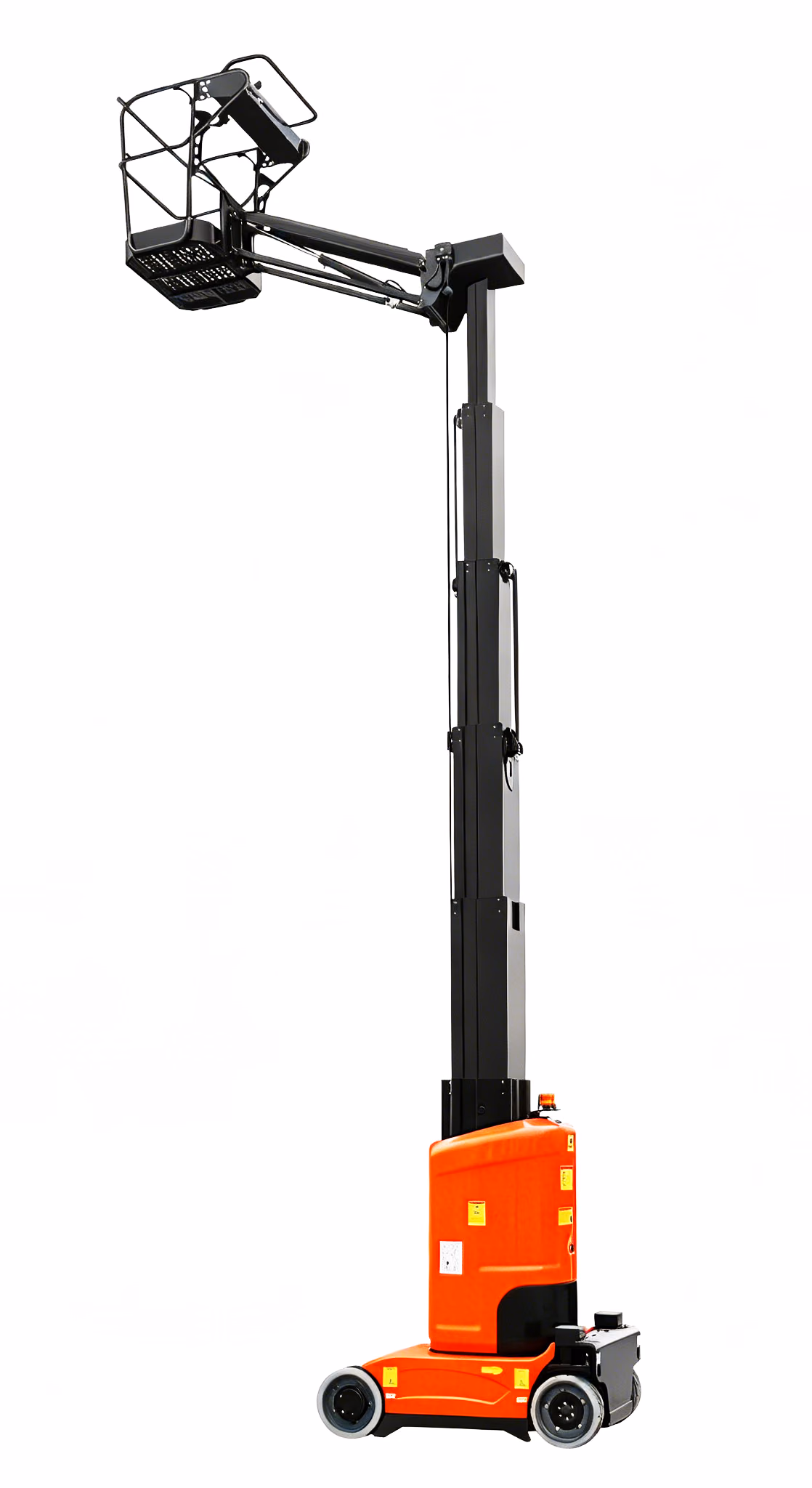

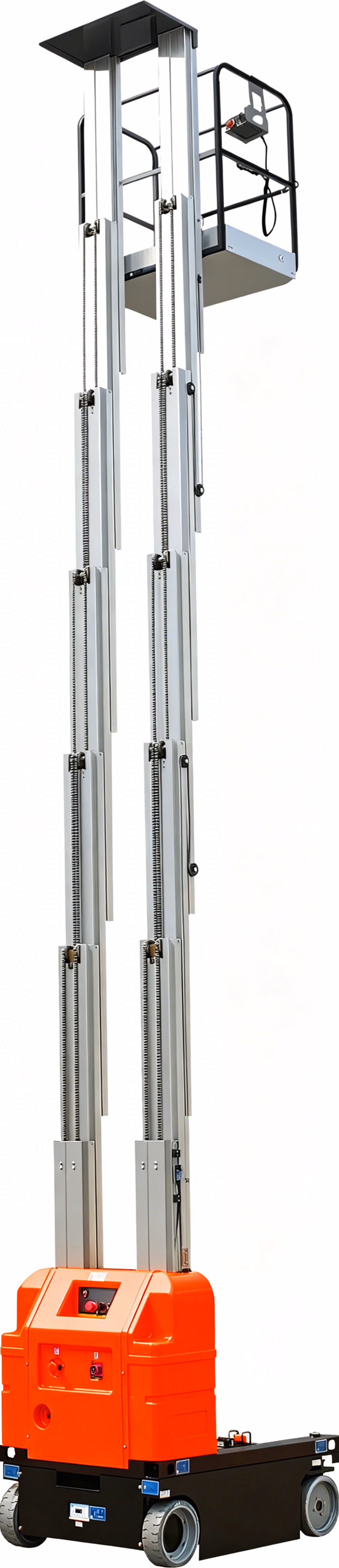

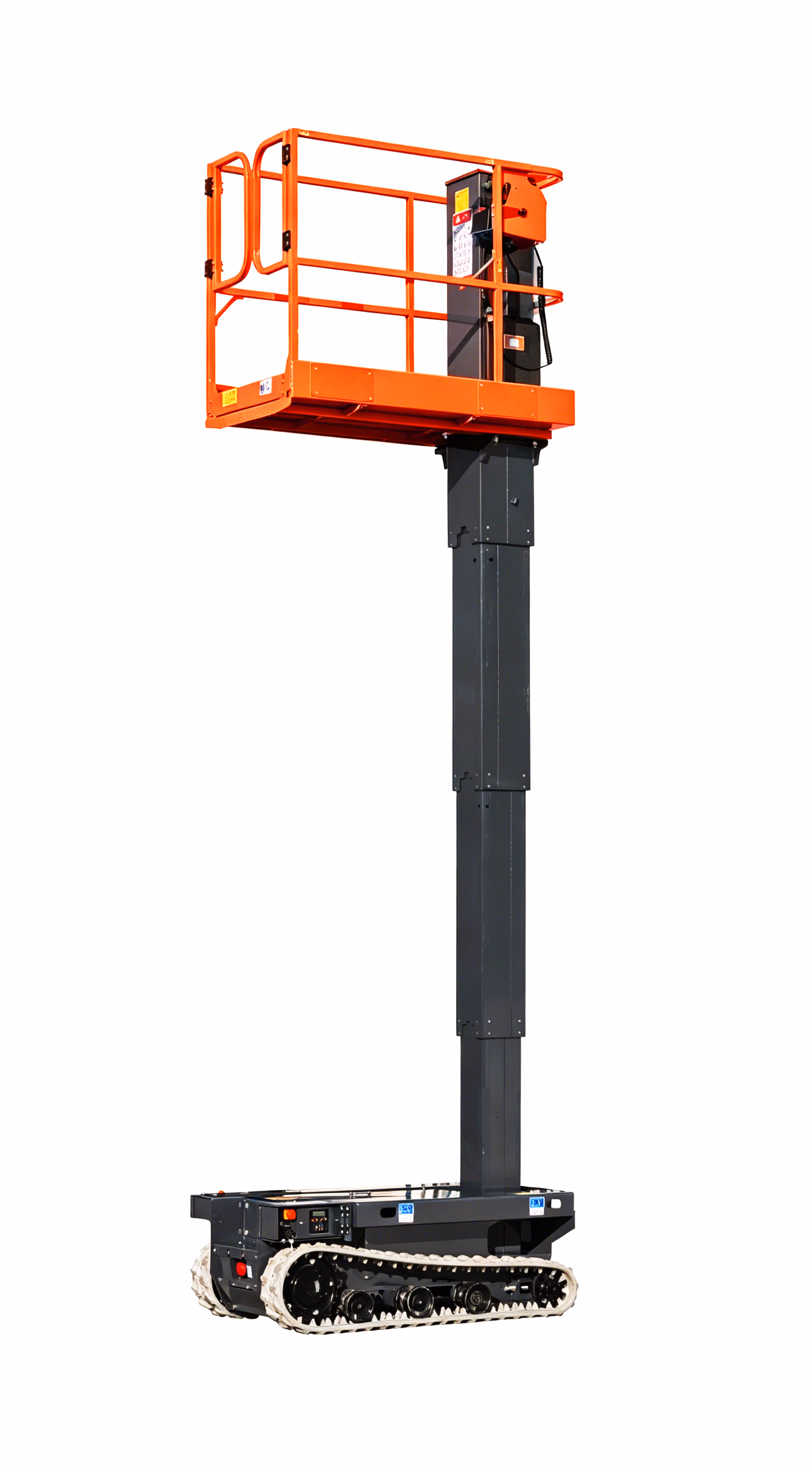

| Parameter | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 | AMWP4C-6110 | AMWP6-1100 | AMWP7.5-1100 | AMWP7.5-2100 | AMWP9-2100 | AMWP11.2-8100 |
|---|---|---|---|---|---|---|---|---|---|
| Height | 5.6m | 6.8m | 8m | 5.8m | 8m | 9.5m | 9.5m | 11m | 13.2m |
| Capacity | 227kg | 227kg | 159kg | 200kg | 150kg | 150kg | 150kg | 150kg | 150kg |
| Power | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Platform | 1.28x0.7m | 1.28x0.7m | 1.28x0.7m | 1.4x0.75m | 0.66x0.67m | 0.66x0.67m | 1x0.65m | 1x0.65m | 1.0x0.7m |
| Weight | 810kg | 980kg | 1160kg | 740kg | 1160kg | 1280kg | 1270kg | 1350kg | 1580kg |
| Max Platform Height | 3.6m | 4.8m | 6m | 3.8m | 6m | 7.5m | 7.5m | 9m | 11.2m |
| Overall Length | 1.36m | 1.36m | 1.36m | 1.44m | 1.3m | 1.3m | 1.4m | 1.4m | 1.5m |
| Overall Width | 0.76m | 0.76m | 0.81m | 0.79m | 0.76m | 0.76m | 0.8m | 0.8m | 0.85m |
| Overall Height | 1.7m | 1.98m | 1.98m | 1.8m | 1.98m | 1.98m | 2.0m | 2.0m | 2.1m |
| Occupants | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 |
| Travel Speed | 4km/h | 4km/h | 4km/h | 4.5km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Battery | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/120Ah | 2x12V/150Ah | 2x12V/200Ah |
| Lift Motor | 24VDC/1.2KW | 24VDC/1.2KW | 24VDC/1.2kw | 24VDC/2.2kw | 24VDC/1.2KW | 24VDC/1.2KW | 24VDC/1.5KW | 24VDC/1.5KW | 24VDC/2.2KW |
| Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
Series Comparison
At-a-glance comparison across all 4 series
| Series | Models | Work Height | Capacity | Power |
|---|---|---|---|---|
| Mast Lift with Jib | 6 | 9-13m | 150-150kg | Electric |
| Telescopic Mast Lift | 9 | 5.6-13.2m | 150-227kg | Electric |
| Vertical Mast Lift | 10 | 5-12m | 125-150kg | Electric |
| Material Hoist | 4 | 3-7.5m | 500-500kg | Electric |
Why Choose Our Products
Engineering excellence that translates to real-world performance and long-term reliability
Ultra-Compact Footprint
Slim profile fits through narrow aisles and doorways.
Quick Single-Operator Setup
Tool-free assembly, work at height within minutes.
Quiet Electric Operation
Battery-powered, silent performance in occupied spaces.
Material Lifting Solutions
Dedicated hoist models handle up to 500kg.
